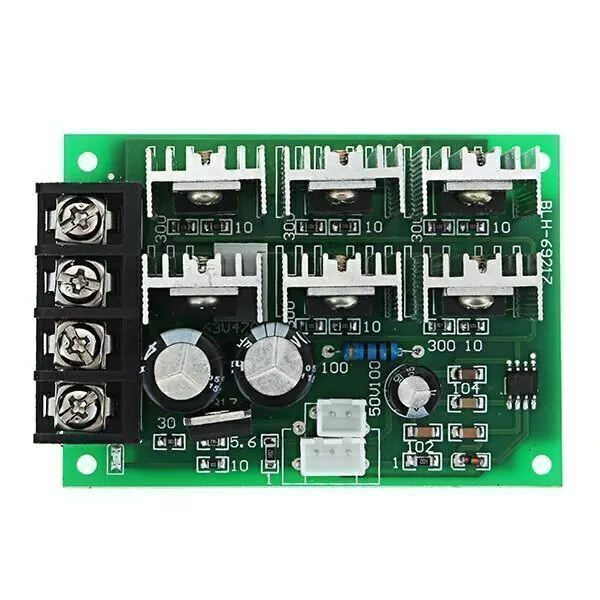

This high capacity dimmer is used to adjust the brightness of 12v LED strips, from 0 to 100%, or as a PWM rotation controller for 12v motors. Its installation is simple, and it has potentiometer control ready to be adapted to panels.

You will like the results offered by this high quality and performance dimmer!

Characteristics:

Adjustable power: 0 ~ 100%

Easy to install and simple to use

Can be connected with amplifiers to extend power

Indications:

- Single color LED strips

- Controller for 12v motors.

- Compatible with LED Window PRO, MAX, FIX, FIT, MOB-X and MOB (if you have any questions, we suggest contacting our consultants before purchasing for replacement)

Technical information:

- Type: Brightness controller for single color led / PWM controller

- Operating voltage: DC 10 V - 60 V Universal

- Output current: 0 to 40A

- Powers: 0.10-1200W Max 40A

- Current: 0.005A (standby)

- Cycle: 0% -100%

- Frequency: 25kHz

- Module size (L x W x H): Approx. 77 x 45 x 28 millimeters

- Weight: 73g

Attention:

- This product is compatible with sources from LED Window PRO, MAX, FIX, FIT, MOB-X and MOB (newer versions)

- This product is not suitable for use in engines of any type.

- We also do not recommend using it to adjust multi-color mixing LED lamps, such as RGB lights

Included Items:

- 1x Dimmer 40A 12V

- 1x Potentiometer with wire and connector added to the board
